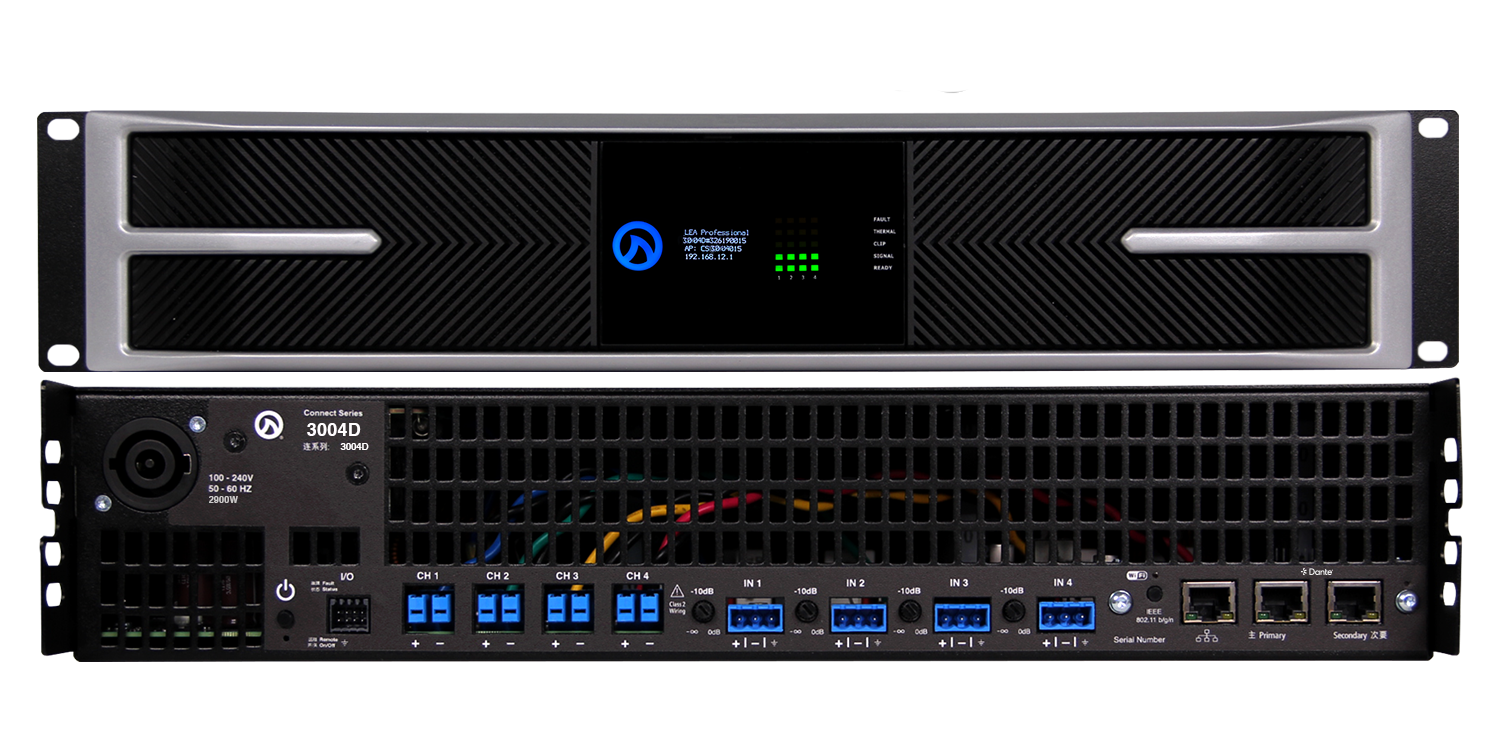

LEA Professional CS3004D 4x3000W; Dante™ intelligent Amplifier

LEA Professional CS3004D 4x3000W; Dante™ intelligent Amplifier

4-Kanal Class-D Installationsendstufe mit Dante™; 4 x 3000W/4Ω, 8Ω, 70V und 100V pro Kanal. Interner DSP mit Frequenzweichen, IoT-Gerät mit integriertem Wi-Fi-Hotspot, Wi-Fi- oder FAST-Ethernet-Konnektivität und hocheffizientes Netzteil

Kurzfristig nicht ab Lager lieferbar

Um dieses Produkt zu bestellen, melden Sie sich bitte hier an.

Produktnummer: 11082

Downloads

Produktinformationen "LEA Professional CS3004D 4x3000W; Dante™ intelligent Amplifier"

AUDIO SPECIFICATIONS

INPUTS: Analog 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity

THD+N: 0.1% (20Hz to 20kHz)
DANTE: 8 x 8 Dante at 96kHz or 48kHz, Multicast or Unicast, AES 67: Configurable via the Dante Controller Software

FREQUENCY RESPONSE: 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω

SIGNAL TO NOISE LEVEL: 105dB (20Hz to 20kHz referenced to 8Ω)

CROSSTALK: 70dB (20Hz to 20kHz)

AMPLIFIER OUTPUT CLASSIFICATION: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality on 2 channels without sacrificing an amplifier channel

DSP

DSP ARCHITECTURE: Analog Devices Sharc 96kHz DSP Processor with 32-bit Core with Sample Rate Converters

INPUT MATRIX: Routable matrix; any input to any output with primary and secondary input priority

CROSSOVERS: Advanced DSP with Linear Phase Brickwall FIR Crossovers and up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth)

PARAMETRIC EQ: 8 Band Parametric EQ per channel

OUTPUT DELAY: 4 seconds per channel

OUTPUT PROTECTION: DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection

USER ADJUSTABLE LIMITING: Peak Voltage and RMS Voltage

LOAD MONITORING: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

CONTROL, MONITORING, NETWORKING

USER INTERFACE: Web Browser User Interface, 3rd Party API control, or Cloud control

EXTERNAL I/O: In: Toggles Remote On/Off, Out: Indicates Amplifier Health

OPERATION

AC MAINS: 100VAC - 240VAC +/- 15% 50Hz or 60Hz

POWER SUPPLY: Universal Switch Mode Power Supply

PHYSICAL SPEC

DIMENSIONS (LxWxH): (362mm x 482mm x 2U)

WEIGHT: 11.8kg

COOLING: Front to Rear Variable Fan Speed Cooling

Fan Noise at idle is 50dB @ 1m

Fan Noise at 50% is 57dB @1m

Fan Noise at full speed is 63dB @ 1m
